29mm Aluminum Alloy Dome Tweeter with Vertex Drive System
-
Twaron® Aramid Fiber Construction
-
Designed for Hi-Res Audio

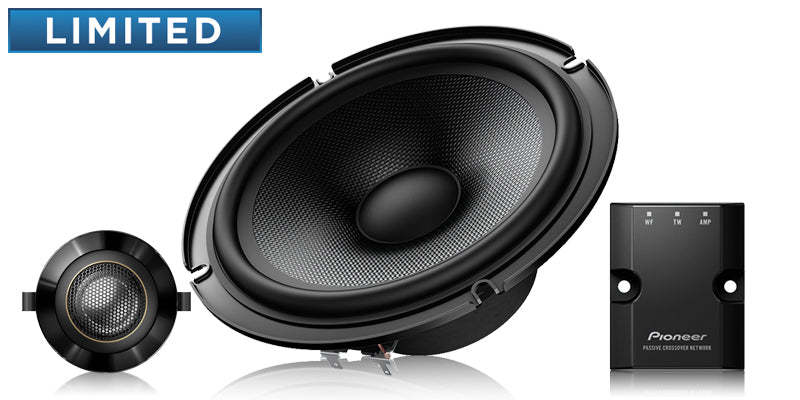

Z FULL RANGE, No Compromises
The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from our decades of automotive loudspeaker design theory and testing ability.
The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from decades of automotive loudspeaker design theory and testing ability. Following Pioneer’s OPEN & SMOOTH™ sound concept, the Z series of automotive loudspeakers features smooth off-axial frequency response, superior directivity and extended frequency range engineered specifically to produce dynamic, accurate sound quality for the car. The result is a purity of sound that achieves unprecedented audio artistry.
Bluetooth
DESIGNED FOR HI-RES AUDIO
The quality of music recordings available to listeners has evolved. Hi-Res Audio recordings contain significantly more data compared to a standard CD recording and require a loudspeaker that is capable of smoothly reproducing frequencies of 40kHz or higher. The Z speakers are designed to deliver sound that’s clearer, sharper and more complex - reproducing music that is closer to the original performance.

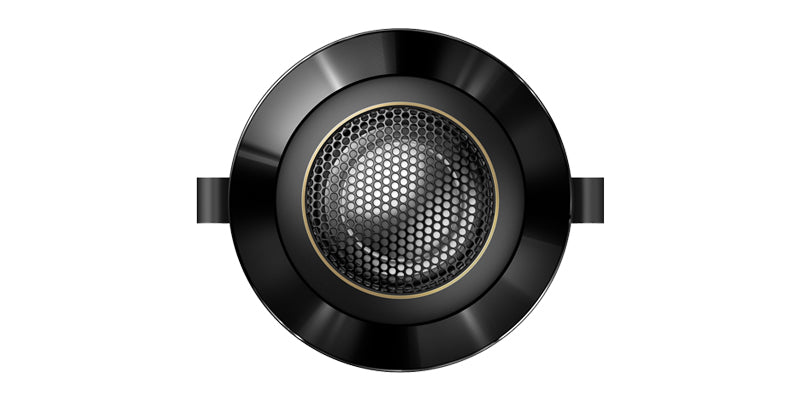

29mm ALUMINUM ALLOY BALANCED DOME TWEETER
The Z tweeter’s aluminum alloy diaphragm allows the tweeter to remain pistonic and linear at ultrasonic frequencies. The unique diaphragm shape, developed using HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis, accurately controls differential vibration produced by the diaphragm and improves high frequency dispersion.
Pioneer’s Vertex Drive System improves the mechanical coupling of the voice coil and the tweeter diaphragm, reducing distortion and coloration caused by low damping and increasing power handling
SYSTEM:
System Type: 2-way Component
Sound Pressure Level (Sensitivity): 85 dB (+- 1.5dB)
Frequency Range: 32 Hz to 96 kHz
Hi-Res Certfied: Continuous Power Handling (RMS): 100 Watts
Maximum Peak Power Handling: 300 Watts
Nominal Impedance: 4 ohms

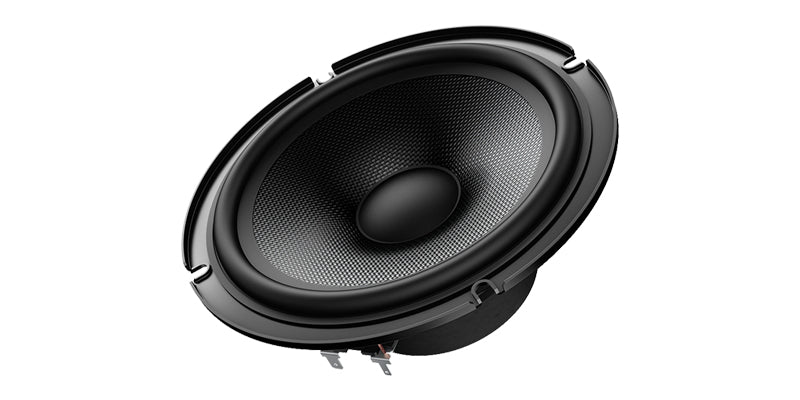

WOOFER:
Diameter: 6.5”
Cone Material: Twaron Aramid Fiber
Center Cap Material: Polypropylene
Surround Material: Butyl Rubber
Basket Material: Stamped Steel
Magnet Material: Ferrite
Magnet Weight: 11.3 oz
Mounting Depth: 2.6”
TWEETER:
Type: Balanced Dome
Diameter: 29mm
Diaphragm Material: Aluminum
Magnet Material: Neodymium
Magnet Weight: 6.4 g
Swivel Type: Yes
CROSSOVER NETWORK:
Crossover Frequency: 1800 Hz
